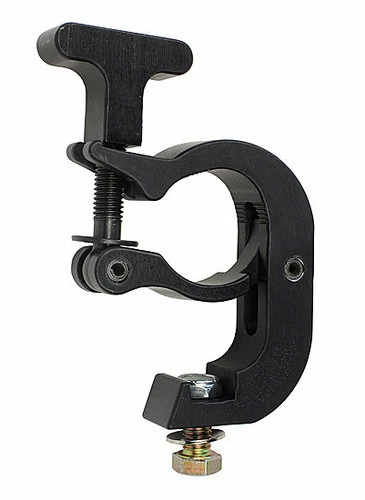

The Light Source TCB-LIGHTSOURCE TC Clamp, Black

The Light Source TC Clamp is a mounting clamp that fastens on 2″ OD to 1.5″ OD tubes. This black anodized clamp has a 2.5″ T-handle so no tools are required to fasten to the pipe. Includes a 1.25″ x 0.5″-13 TPI Grade 8 fastener, Nylock Nut and 1″ diameter Belleville Spring washer for connecting your load.

The Light Source TC Clamp Specifications:

• Part Number: TCB
• Minimum Size: 1.5″ OD tube, 1.25″ pipe, 1.66″ OD pipe
• Maximum Size: 2″ OD truss tube, 1.5″ pipe, 1.9″ OD pipe
• Safe Vertical Working Load: 450 lbs (200 kg)
• Hardware:
  • 1.25″ x 0.5″-13 TPI Grade 8 fastener with Nylock nut
  • 1″ Belleville spring washer
• Dimensions (HxWxD): 4.625″ x 4″ x 1.19″ (11.7 x 10.16 x 3 cm)
• Weight: 1.25 lbs (0.55 kg)
