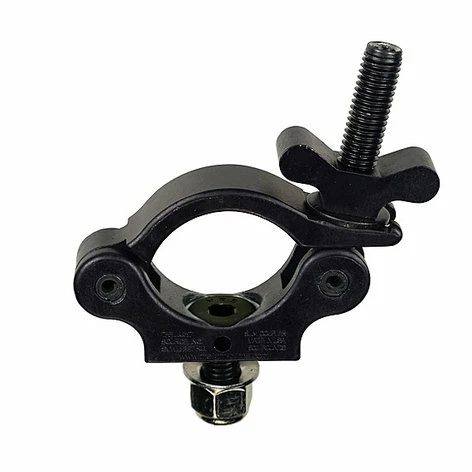

The Light Source MSCB-1/2CS Mega-Slim Coupler With 1/2″ Flat Head Bolt, Black

The Mega Slim Coupler from The Light Source, is a lower profile option for smaller light fixtures. It’s half the size of the standard Mega-Coupler, and weighs 30% less; yet fits the same as the Mega-Coupler. This particular model is the MSCB-1/2CS with black anodized finish, and featuring a 1/2″ Flat Head Countersunk Bolt.

The Mega Slim will fasten from 1-1/4″ pipe (1.66 OD) to 2.050 OD Truss Tube. It has a wide wing nut for easy fastening of the coupler to the pipe or tube as well as a pocket for the 1/2″ bolt. It includes the 1/2″ zinc plated bolt along with nylock nut and spring washer, with the bolt fitting flush into the Coupler unit.

The Light Source Mega Slim Coupler MSCB-1/2CS Specifications:

• Minimum Size: 1.25″ pipe, 1.66 OD pipe
• Maximum Size: 1.5″ pipe, 1.90 OD pipe, 2.050″ OD Truss Tube
• Safe Vertical Working Load: 500 lbs
• Hardware:
  • 1/2″ Counter Sunk Bolt
  • Belleville Washer
  • Nylock Nut
• Weight: 0.65 lbs.
• Case Quantities: 24
