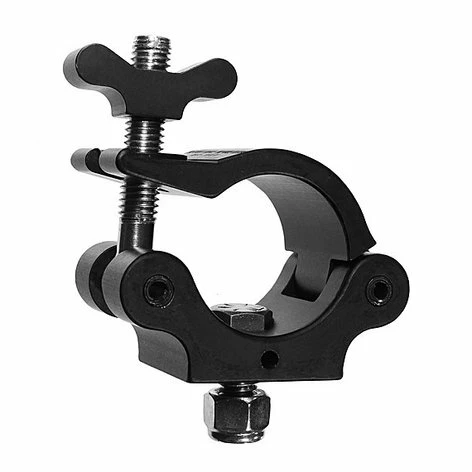

The Light Source MLB-LIGHT-SOURCE Mega-Coupler, Black

The standard Black Mega-Coupler # MLB. Has a 1/2″ x 1 1/4″ Hex Head Bolt with the Light Source Wing Nut. The Mega-Coupler has solid nut tabs that won’t break off. Mega-Coupler uses standard 0.5″ by 1-1/4″ long hex head grade 8 bolts to secure your load. Bolt head locks into hex milled pocket so that you can tighten the nyloc nut while the clamp is installed. Has industry compatible 14 mm thick base. The Mega-Coupler fastens from (1-1/4″ Pipe) 1.66″ OD to 2″ OD truss tube.

Specifications

• Minimum Size: 1.25″ pipe, 1.66″ OD pipe
• Maximum Size: 1.5″ pipe, 1.90″ OD pipe, 2″ OD truss tube
• Safe Vertical Working Load: 1,100 lbs (500kg)
• Standard hardware:
  • 1/2-13″ x 1 1/4″ Hex Head grade 8 zinc plated steel bolt with nylock nut
  • 1″ Belleville Washer
• Weight: 1.2 lbs
