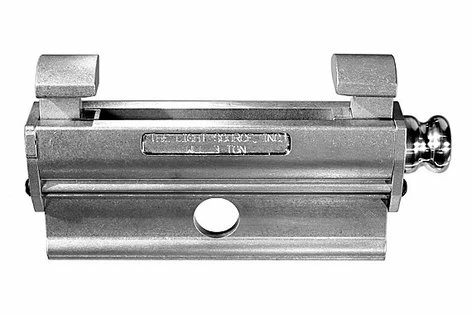

The Light Source MBC3T-8M 8″ Mega-Beam Clamp, 3 Ton

The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 8″ model has a 3 ton rating. The two aircraft aluminum jaws are adjusted on the 3/4″-6 tpi Acme threaded shaft. The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.

Fastens from 2″ to 8″ wide I-beam flanges up to 1″ thick. Center hole is 1-1/2″.

The Light Source MBC3T-8B Specifications:

• Safe Vertical Working Load: 6,000 lbs. (2720 kg)
• Dimensions (LxHxW):
  • 14.5″ x 7.5″ x 2.75″
  • Actual center hole is – 1 1/2″
• Weight: 10.25 lbs
