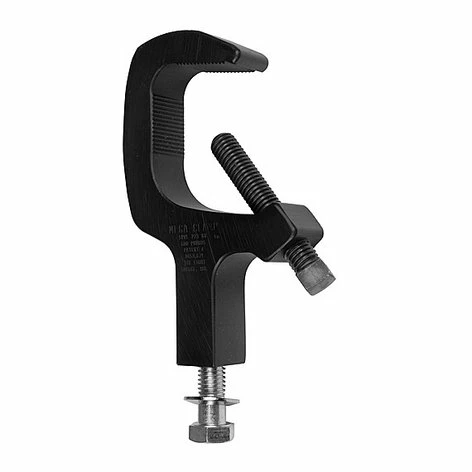

The Light Source MAB2 Mega Clamp With 2″ Long Bolt, Black

The Light Source MAB2 Mega-Clamp is the world’s new standard theatrical lighting C-Clamp. The Mega-Clamp is created from high tensile, aircraft grade, extruded aluminum; so it’s both stronger and lighter than cast iron clamps. The Mega-Clamp’s safety factor far exceeds industry standards, breaking at over 2-1/2 tons at an independent testing laboratory. It is half the weight and twice as strong as most cast iron clamps.

The MAB2 Mega-Clamp fits from 1″ pipe to 2″ pipe sizes (1-1/4″ OD to 2.375″ OD tubes). This means you can hang fixtures from a 2″ pipe without having to buy an expensive “Heavy Duty Clamp”. The Mega-Clamp fits the larger pipe standard.

The Light Source MAB2 Specifications:

• Minimum Size: 1″ pipe, 1.315″ OD
• Maximum Size: 2″ pipe, 2.375″ OD
• Safe Vertical Working Load: 600 lb (273 kg)
• Hardware:
  • 1/2″ x 1″ long hex head Grade 5 zinc bolt
  • 1/2″ x 3″ long square head set screw
  • Belleville spring washer
• Dimensions (HxWxD): 5.875″ x 3.675″ x 1″
• Weight: 13.4 oz
• Case Quantities: 48
