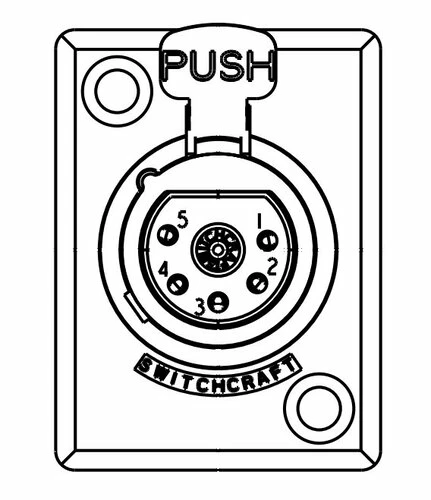

Switchcraft D5F 5-pin XLRF D Series Panel Mount Connector

Female receptacle for panel or chassis mounting. Flange has two .136-inch (3.45 mm) diameter countersunk holes for #5-40 flat head mounting screws (not supplied). Mounts from front of panel or chassis in .953-inch (24.21 mm) diameter hole. Standard latchlock.

Specifications

• Electrical
  • Contact Resistance: 50 milliohm maximum, per pole.
  • Current Rating: 3 pole – 15A, 4 pole – 10A, 5 and 6 pole – 7.5A, 7 pole – 5A @ 125VAC.
  • Insulation Resistance: 1,000 MO, minimum.
  • Dielectric Withstanding Voltage: 1,000 V (rms).
  • Capacitance: 2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F).
• Mechanical-
  • Insertion/Withdrawal Forces: 7 pound maximum, 5 pound nominal, insertion; 7 pound maximum, 5 pound nominal, withdrawal.
  • Wire Size: #12 wire gauge solid; #14 wire gauge stranded (3 contact). #14 wire gauge solid; #16 wire gauge stranded (4 contact). #16 wire gauge solid; #18 wire gauge stranded (5 and 6 contact). #18 wire gauge solid; #20 stranded (7 contact). (Q-G and QGP).
• Material- Q-G Connectors (A and AA Series)
  • Shell: Die-cast zinc. Satin nickel finish, black velvet.
  • Insert Insulation: Molded thermoplastic.
  • Socket Contacts: Silver-plated copper alloy tarnish-resistant; bifurcated on 3-contact type. Gold is available.
  • Pin Contacts: Silver-plated copper alloy. Resists tarnishing, and provides excellent electrical conductivity. Gold is available.
  • Latchlock: High-strength die-cast zinc.
  • Latch Release: Steel, nickel-plated.
  • Latch Detent: Formed stainless steel.
  • Insert Screw: Stainless steel.
  • Flex Relief: TPR (thermoplastic rubber)
