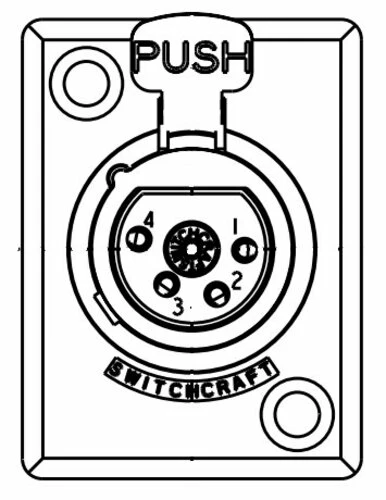

Switchcraft D4F 4-pin XLRF D Series Panel Mount Connector

Studio quality black and gold Q-G ® receptacle with black housing and gold contacts is designed for low / stable contact resistance and withstands corrosion where highest quality is required for recording and broadcast studio equipment, consoles, and other applications.

Female receptacle for panel or chassis mounting. Flange has two .136-inch (3.45 mm) diameter countersunk holes for #5-40 flat head mounting screws (not supplied). Mounts from front of panel or chassis in .953-inch (24.21 mm) diameter hole. Standard latchlock; satin nickel finish.

Specifications

• Electrical
  • Contact Resistance: 50 milliohm maximum, per pole.
  • Current Rating: 3 pole – 15A, 4 pole – 10A, 5 and 6 pole – 7.5A, 7 pole – 5A @ 125VAC.
  • Insulation Resistance: 1,000 MO, minimum.
  • Dielectric Withstanding Voltage: 1,000 V (rms).
  • Capacitance: 2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F).
• Mechanical
  • Insertion/Withdrawal Forces: 7 pound maximum, 5 pound nominal, insertion; 7 pound maximum, 5 pound nominal, withdrawal.
  • Wire Size: #12 wire gauge solid; #14 wire gauge stranded (3 contact). #14 wire gauge solid; #16 wire gauge stranded (4 contact). #16 wire gauge solid; #18 wire gauge stranded (5 and 6 contact). #18 wire gauge solid; #20 stranded (7 contact). (Q-G and QGP).
• Material- Q-G Connectors (A and AA Series)
  • Shell: Die-cast zinc. Satin nickel finish, black velvet.
  • Insert Insulation: Molded thermoplastic.
  • Socket Contacts: Silver-plated copper alloy tarnish-resistant; bifurcated on 3-contact type.
  • Pin Contacts: Silver-plated copper alloy. Resists tarnishing, and provides excellent electrical conductivity.
  • Latchlock: High-strength die-cast zinc.
  • Latch Release: Steel, nickel-plated.
  • Latch Detent: Formed stainless steel.
  • Insert Screw: Stainless steel.
  • Flex Relief: TPR (thermoplastic rubber).
