Neutrik RT5FC-B-W REAN 5-Pin Tiny XLR-F Connector With Gold Contacts

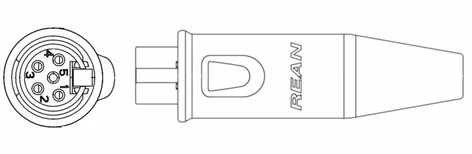

REAN’s RT5FC-B-W is a 5-pole TINY XLR-F cable connector with black metal shell, is water resistant due to rubber sealing boot (patent pending), and has gold-plated contacts.

Electrical Specifications:

• Contact resistance: < 5 mO (inner)
• Dielectric strength: > 0.5 kVdc
• Insulation resistance: > 1 GO
• Rated current per contact: < 5 A

Mechanical Specifications:

• Cable O.D.: 2.0 – 4.5 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 0.22 mm²
• Wiresize: 24 AWG

Material Specifications:

• Strain relief: PVC
• Protection boot: EPDM
• Temperature range: -30 °C to +85 °C
