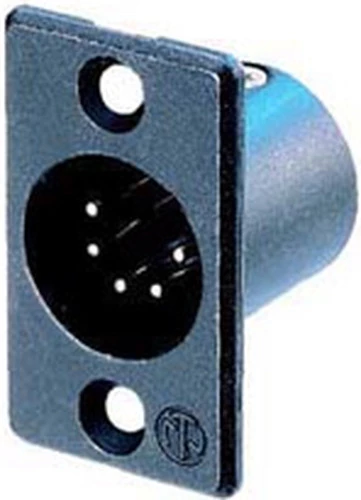

Neutrik NC5MP-B-RST-AG 5-pin XLRM Rectangular Panel Mount Connector, Black With Gold Contacts

5 pole. Male receptacle compatible with Switchcraft® D5M, ITT Cannon XLR-5-32. Black metal housing and gold contacts.

Smallest available hard wiring large solder cups.

This is a Restock item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Electrical Specifications:

• Number of contacts: 5
• Rated voltage: 50 V ac
• Contact resistance: < 5 m ohm
• Insulation resistance, initial: > 2 G ohm; after damp heat test: > 1G ohm (IEC 68-2-30)
• Dielectric strength: 1500 V dc
• Rated current: 7.5 I [A], 1.0/18 mm2/AWG, = 7 C
• I … Rated current per contact
• C … Capacitance between contacts

Mechanical Specifications:

• Lifetime: > 1000 mating cycles
• Insertion / withdrawal force: = 20 N
• Separating force: = 20 N

Material Specifications:

Environmental Specifications:
