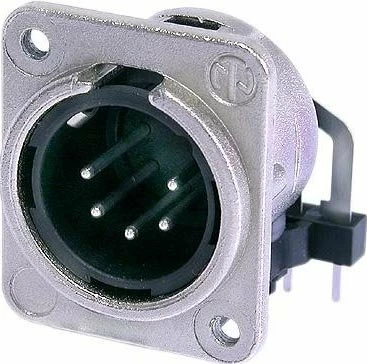

Neutrik NC5MDM3-H 5-pin XLRM Panel Mount Receptacle

Universal D-size metal body XLR panel mount series. UL recognized component. 5-pole male receptacle, horizontal PCB mount, Nickel housing, silver contacts, M3 mounting holes

Features:

• “D” metal shell
• Standardized D sized 24 mm panel cutout
• PCB mount termination

Specifications:

• Connector Type: XLR
• Gender: male
• Capacitance between contacts: < /= 7 pF
• Contact resistance: < /= 5 mOhm
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 2 GOhm (initial)
• Insulation resistance: > 1 GOhm (after damp heat test)
• Rated current per contact: 7.5 A
• Rated voltage: 50 V
• Insertion force: < /= 20 N
• Withdrawal force: < /= 20 N
• Lifetime: > 1000 mating cycles
• Wiring: Horizontal PCB Mount
• Locking device: latch lock
• Mounting direction: rear
• Chassis shape: D
• Mounting: Mounting holes with M3 threads
• Contact plating: 2 µm Ag over 2µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steek Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Approvals; UL
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
