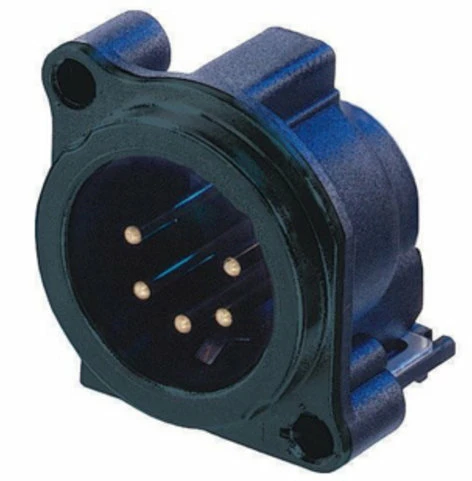

Neutrik NC5MBV-B 5-pin XLRM Jack With Vertical PCB Mount, Black

The Neutrik NC5BMV-V is a 5-pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount, black chrome shell.

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice.

Neutrik NC5MBV-B Features:

• Smallest XLR receptacles, highest packing density
• Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
• Housing flammability UL94HB

Neutrik NC5MBV-B Specifications:

• Electrical Specifications:
  • Number of contacts: 5
  • Rated current: 3 A
  • Rated voltage: 50 V ac
  • Contact resistance: = 5 m Ohm
  • Insulation resistance, initial > 2 G Ohm; after damp heat test > 1 GOhm (IEC 68-2-30)
  • Dielectric strength: 1500 V dc
• Mechanical Specifications:
  • Lifetime: > 1000 mating cycles
  • Insertion / withdrawal force: = 20 N
  • Separating force: = 20 N
• Material Specifications:
  • Shell (Insert) PA 6.6 25% GR ( 5-pole: PA 6.6 30% GR)
  • Contacts: CuZn35Pb2
  • Contact surface: 0.2 mm AuCo over 2 mm NiP 15 (Tribor®)
  • Ground contact: 0.3 µm AG, passivated
  • Ring: ZnAl4Cu1
  • Latch lock & spring: CK 67 steel, treated
• Environmental Specifications:
  • Temperature range: -30° C to + 80° C
  • Flammability: UL 94 HB
  • Solderability: complies with IEC 68-2-20
