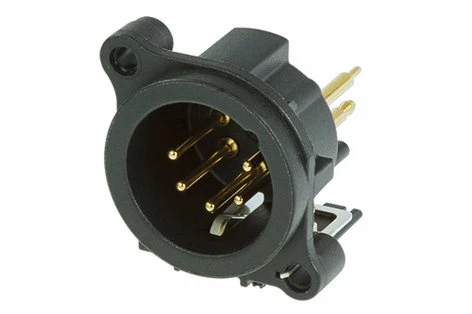

Neutrik NC5MAV A Series 5-pin XLRM Jack With Vertical PCB Mount

Neutrik’s NC5MAV is a round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centers). UL recognized component.

Features:

• Smallest XLR receptacles, highest packing density
• Plastic housing, steel latch lock
• Polished contact areas and hard gold plating
• Housing flammability UL94HB

Specifications:

• Electrical :
  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 6 mO (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GO (initial)
  • Rated current per contact: 3 A
  • Rated voltage: 50 V
  • Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
• Mechanical :
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: vertical PCB mount
  • Locking device: Latch lock
  • Mounting direction: rear
  • Chassis shape: A
  • Mounting: A-Screw
• Material :
  • Contacts: Brass (CuZn35Pb2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Flange: Black Plastic
• Environmental :
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
