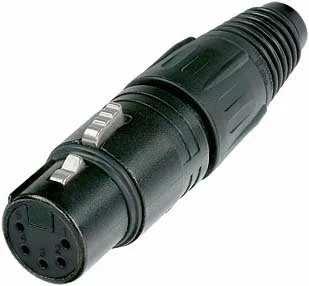

Neutrik NC5FX-B 5-pin XLRF Cable Connector, Black With Gold Contacts

Neutrik’s NC5FX-B is a 5-pole XLR-F cable connector with black metal housing and gold contacts.

This “industry standard” XLR cable connector is easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fiberglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

Features:

• Rugged zinc diecast shell, long lasting and durable
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses
• Coloured rings and boots available for coding and marking
• UL recognized components

Specifications:

• Capacitance between contacts: = 7 pF
• Contact resistance: = 3 mOhm (inner)
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GOhm (initial)
• Rated current per contact: 7,5 A
• Rated voltage: 50 V
• Cable O.D.: 3.5 – 8.0 mm
• Insertion force: = 20 N
• Withdrawal force: = 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.0 mm²
• Wiresize: max. 18 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
• Boot: Polyurethane
• Bushing: Polyamide (PA 6 15% GR)
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: St3K32 (latch) / Ck 67 (spring)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium
• Strain relief: Polyacetal (POM)
• Approvals: UL
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
