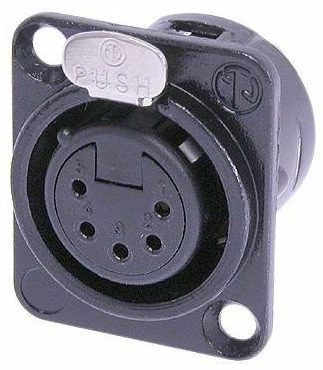

Neutrik NC5FD-L-BAG-1 5-pin XLRF Panel Connector With Solder Cups

The Neutrik NC5FD-L-BAG-1 is a 5-pole female XLR receptacle with solder cups, a black metal housing, and silver contacts. It has a universal D-size metal body XLR panel mount. UL recognized component.

Neutrik NC5FD-L-BAG-1 Features:

• Robust “D” metal shell
• Standardized D sized 24 mm panel cutout
• Solder cups

Neutrik NC5FD-L-BAG-1 Specifications:

• Electrical:
  • Capacitance between contacts: < / = 7 pF
  • Contact resistance: < / = 5 mOhm (inner)
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GOhm (initial)
  • Rated current per contact: 7.5 A
  • Rated voltage: < 50 V
• Mechanical:
  • Insertion force: < / = 20 N
  • Withdrawal force: < / = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Chassis shape: D
• Material:
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
• Environmental:
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
