Neutrik NC5FAH-NEU 5-Pin Female XLR Connector

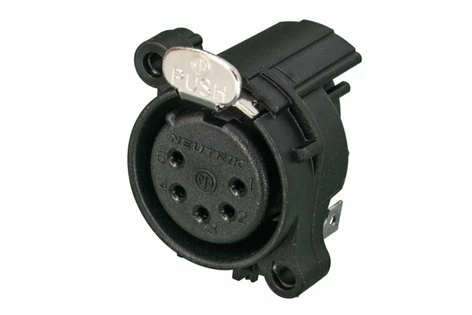

Neutrik’s NC5FAH is a 5-pole female XLR receptacle featuring a separate ground contact to mate the connector shell and front panel. This round plastic body PCB mount XLR connector is equipped with newly designed tulip type contacts with a gold plated contact area and tin plated PCB termination area.

Neutrik NC5FAH Features:

• Smallest XLR receptacles, highest packing density
• Plastic housing, steel latch lock
• Tulip type female contact
• Polished contact areas and hard gold plating
• Housing flammability UL94HB

Neutrik NC5FAH Specifications:

• Electrical Specifications:
  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 6 mOhms
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GOhms (initial)
  • Rated current per contact: 3 A
  • Rated voltage: < 50 V
  • Grounding Options: Separate ground contact to mating connector shell and front panel
• Mechanical Specifications:
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Horizontal PCB mount
  • Locking device: Latch lock
  • Mounting direction: Rear mounting
  • Chassis shape: A
  • Mounting: A-Screw
• Material Specifications:
  • Contacts: Bronze (CuSn6)
  • Locking element: Steel Ck67
  • Shell: Polyamide (PA 6.6 30 % GR)
• Environmental Specifications:
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30°C to +80°C
