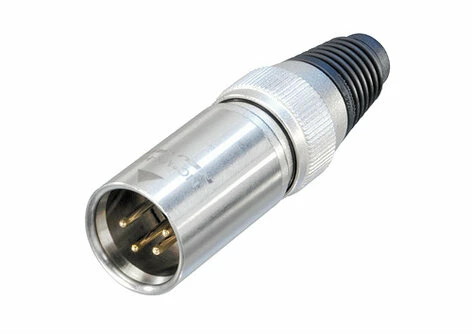

Neutrik NC4MX-HD Heavy Duty 4-pin XLRM Cable Connector

Male, heavy duty version with metal boot and stainless steel shell.

Specifications:

• Electrical Specifications:
  • Number of contacts: 4
  • Contact resistance: = 3 m ohm
  • Insulation resistance, initial: > 2 G ohm; after damp heat test: > 1 G ohm
  • Dielectric strength: 1500 V dc
  • Rated current: 10 A
  • AWG: 2.5 mm²/14 AWG
  • Capacitance between contacts: = 4pF
• Mechanical Specifications:
  • Lifetime: >1000 cycles
  • Insertion / withdrawal force: = 20 N
  • Cable O.D. range: 3.5 mm – 8.0 mm
• Material Specifications:
  • Shell: ZnAl4Cu1, gal Ni or black Cr over Cu plating
  • Shell (male): stainless steel and zinc diecasting combined.
  • Insert: PA 6.6 30% GR (glass reinforced)
  • Contacts: CuZn39Pb3
  • Contact surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
  • Strain-relief clamp: POM
  • Antikink bushing: PUR
  • Sealing jacket: EPDM
