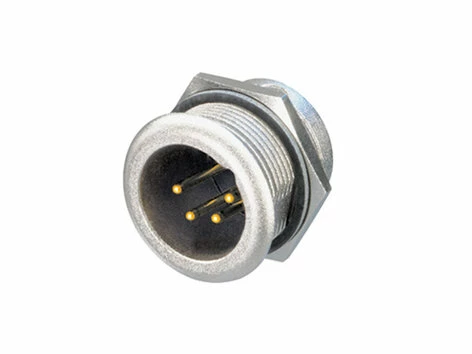

Neutrik NC4MPR-HD 4 Pin XLR-M Chassis Mount Connector

Neutrik’s NC4MPR-HD is a heavy-duty sealed male 4-pole XLR chassis connector designed for outdoor use. This chassis connector is well suited for outdoor and weatherproof applications as well as a wide range of industrial applications.

Neutrik NC4MPR-HD XLR Chassis Connector Features:

• IP 65 – in combination with NC4FX-HD cable connector (
• Well suited for outdoor applications
• Sealing gasket for water tight panel mount
• Gold plated contacts
• Fastening nut included

Neutrik NC4MPR-HD XLR Chassis Connector Specifications:

• Electrical:
  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 5 mO
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GOhms (initial)
  • Rated current per contact: 10 A
  • Rated voltage: < 50 V
• Mechanical:
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.5 mm²
  • Wiresize: max. 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Mounting direction: Front mounting
  • Chassis shape: P
• Material:
  • Contact plating: 0.2 µm Au over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Gasket: Tesnit®
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
• Environmental:
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 65
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
