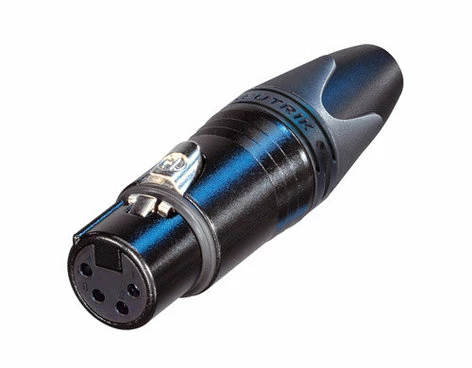

Neutrik NC4FXX-BAG 4-pin XLRF Cable Connector, Black

4 pole female cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features:

• Unique cage design of female contact for low contact resistance and highintegrity
• Female contact incorporates a solder barrier to prevent solder runninginto the contact mating area
• Female connector with improved solid metal latch which is larger andeasier to handle
• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makesassembly easier and faster
• Boot with polyurethane gland gives high protection to cable bendingstresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design – valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well proteced against any damage
• Branded with unique hologram – guarantees genuine and authentic Neutrikproduct

Specifications:

• Electrical Specifications:
  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 3 mO (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GO (initial)
  • Rated current per contact: 10 A
  • Rated voltage: 50 V
• Mechanical Specifications:
  • Cable O.D.: 3.5 – 8.0 mm
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.5 mm²
  • Wiresize: max. 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
• Material Specifications:
  • Boot: Polyurethane
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67(spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)
• Environmental Specifications:
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
