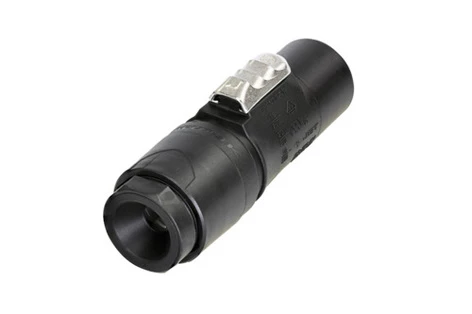

Neutrik NAC3MX-W-TOP-L Locking Power-Out Cable Connector, Diameters 10 – 16mm

The Neutrik NAC3MX-W-TOP-L is a locking male cable connector designed for big power cord diameters between 10–16 mm (0.39–0.63 inches). Perfect for H07RN-F3G2.5 or SOOW 12/3 / SOOW 14/3 cables. Certified to EN/UL 60320-1. This connector features power out, screw terminals, IP65 rating, and carries up to 16 A (USA: 20A). The powerCON TRUE1 TOP is a single-phase connector ideal for outdoor applications with breaking capacity (CBC), meaning it can be connected or disconnected under load or live. This heavy-duty sealed power connector is also made with high-impact UV-resistant materials, allowing it to perform in harsh and demanding environments.

Neutrik NAC3MX-W-TOP-L Features:

• Connector for cable diameters of 10-16 mm (0.39 – 0.63 inches)
• IEC EN 60320-1 and UL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and of equipment acc. to IEC 62368-1
• TOP True Outdoor Protection
• Uses high impact UV-resistant materials
• Single phase connector with Circuit Breaking Capability (20 A 250 VAC)
• Extremely robust and reliable cable retention

Neutrik NAC3MX-W-TOP-L Specifications:

• Technical:
  • Connector series: powerCON TRUE1
• Electrical:
  • Dieletric strength: 2.8 kVac
  • Insulation resistance: > 0.1 GΩ
  • Number of electronical contacts: 2 + PE
  • Rating Europe:
  • Rating USA:
• Mechanical:
  • Cable O.D.: 10 – 16 mm (0.39 – 0.63 inches)
  • Lifetime: Typically 5’000 mating cycles
  • Wire size (mm²): 2.5 mm²
  • Wire size (AWG): 14 – 12 AWG
• Material:
  • Contact plating: Ag
• Environmental:
  • Temperature range: -30 °C to +80 °C
  • Flammability: UL94 V-0
  • Protection class: IP65
  • UV resistance: F1 rated material withstands UV exposure
