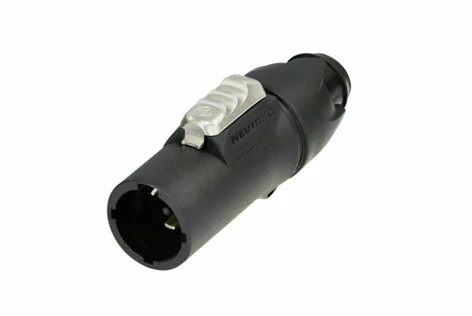

Neutrik NAC3MX-W-TOP Cable End – Powercon TRUE1 TOP – Male – Power In – Screw Terminals – IP 65 And UV Rated

From Neutrik, the powercon TRUE1 TOP is a locking male 16 A true mains connector for outdoor applications. Replace appliance couplers wherever a very rugged solution in combination with a locking device is needed. Guarantee a safe power connection with featured the breaking capacity (CBC) allowing it can be connected or disconnected under load or live.

Features

• Heavy duty sealed power connector for harsh and demanding environment
• Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
• Uses high impact UV-resistant materials
• True mains connector with breaking capacity (CBC)
• Lockable 16 A single phase connector (USA: 20 A)
• Easy and reliable twist lock system
• Unique Neutrik cable retention

Specifications

• Electrical
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 16 A (USA: 20A)
  • Rated voltage: 250 V ac
• Mechanical
  • Cable O.D.: 6- 12 mm
  • Lifetime: > 5000 mating cycles
  • Wiresize: 1-2.5 mm²
  • Wiresize: 12 AWG
• Material
  • Contact plating: 2 µm Ag
  • Contacts: Spring CuNi1Si0.2
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: ZuAl4Cu1
  • Shell: Polyamide (PA 6.6 30 % GR)
  • Strain relief: Polyacetal (POM)
• Environmental
  • Flammability: UL 94 V-0
  • Protection class: IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX)
  • Temperature range: -30 °C to +80 °C
