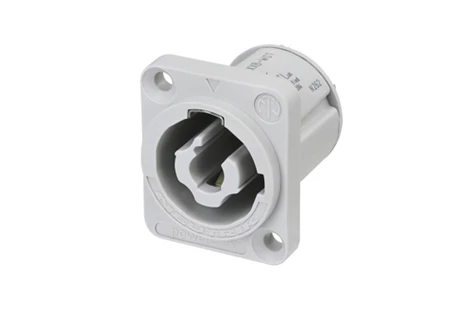

Neutrik NAC3MPXXB-WOT PowerCON 20 A – 60320-1 Certified – Power Out Receptacle Without Tang, Gray

This is a gray appliance outlet connector featuring 3/16″ flat tab terminals, without insulation divider

The powerCON XX is a reliable locking mains connector designed to replace appliance couplers, ensuring a secure power connection with its locking mechanism. It is fully compliant with the IEC 62368-1 device standard and is certified according to IEC 60320-1. Additionally, it’s a connector with breaking capacity (CBC), meaning it can be connected or disconnected while live, making it a versatile and dependable solution.

Neutrik NAC3MPXXB-WOT Features:

• Lockable single phase connector
• Certified according to IEC 60320-1 & UL 60320-1
• 3 contacts for line, neutral and premating safety ground
• Certified according to UL-1977 & CAN/CSA-C22.2 No. 182.3
• Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Extremely robust and reliable
• IEC 62368-1 compliant
• UL94 V-0 materials used

Neutrik NAC3MPXXB-WOT Specifications:

• Product:
  • Title: NAC3MPXXB-WOT
  • Gender: male
• Electrical:
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 10 GΩ (initial)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: EN 60320-1: 16 A 250 V AC
  • EN 61984: 20 A 250 V AC
  • Rating USA: UL 60320-1:20 A 127 V AC
  • UL 1977: 20 A 250 V AC
• Mechanical:
  • Lifetime: > 5000 mating cycles
  • Wiresize: 2,5 mm²
  • Wiresize: 12 AWG
• Material:
  • Contact plating: Ag
  • Locking element: Stainless steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Copper Alloy
• Environmental:
  • Flammability: UL 94 V-0
  • Temperature range: -30 °C to +80 °C
  • Protection class: IP 20
