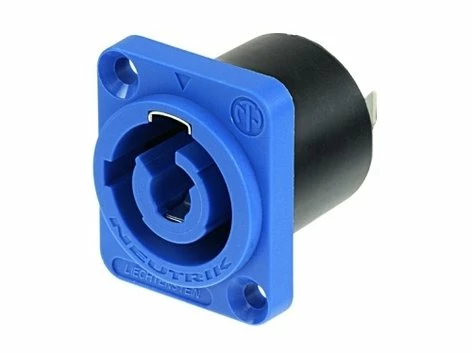

Neutrik NAC3MPA-1-WOT Powercon Panel-Mount Receptacle Input W/O Insulation Divider, Blue

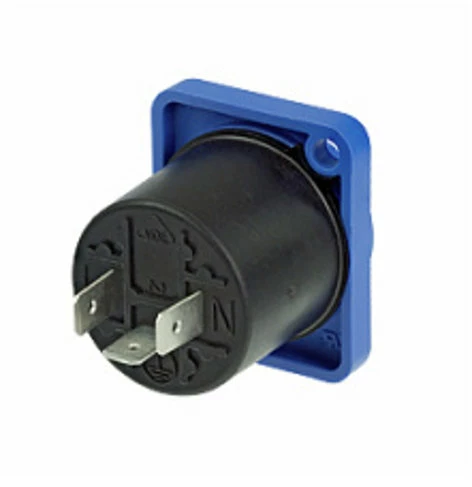

Neutrik’s NAC3MPA-1-WOT is a blue panel-mount powercon chassis connector with 3/16″ flat tab terminals and no insulation divider.

The powercon is a locking 3-conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Features

• Air tight chassis connector, A-type for power-in, flat tab terminals
• Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground
• High current capacity, rated at 20A / 250VAC
• Fast and easy twist lock system
• Extremely robust and reliable
• Ergonomic design
• Excellent cable retention
• UL, cUL recognized components
• VDE certified

Specifications

• Electrical
  • Contact resistance: = 3 mOhms
  • Dielectric strength: 4 kVDC / 2.8 kVAC
  • Insulation resistance: > 0.1 GOhms (after damp heat test IEC 68-2-30)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 20 A RMS
  • Rated voltage: 250 VAC
• Mechanical
  • Lifetime: > 1000 mating cycles
  • Locking device: Quick Lock
  • Mounting direction: Front mounting
  • Chassis shape: D
• Material
  • Contacts: Bronze (CuNi1Si0.2)
• Environmental
  • Flammability: UL 94 V-0
  • Temperature range: -30°C to + 80°C

Product specific

• Coding: A-type for power inlet (color coding blue)

Note

The powercon is a connector without breaking capacity, i.e. the powercon should not be connected or disconnected under load or live.
