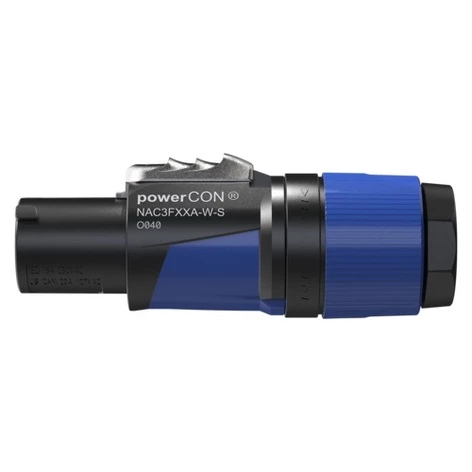

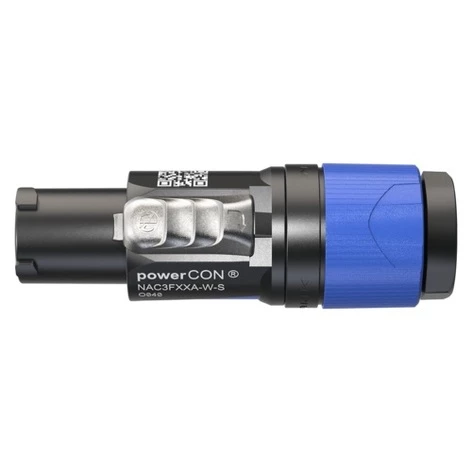

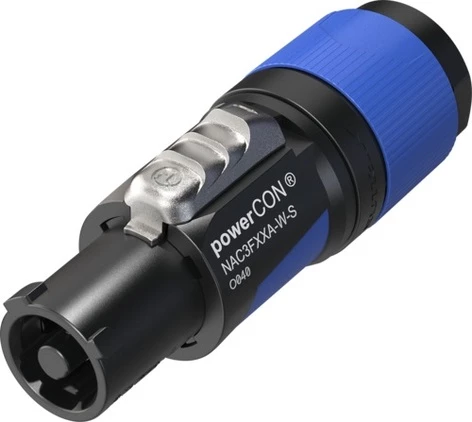

Neutrik NAC3FXXA-W-S PowerCON 3 Conductor Power Connector, 6 – 12mm, In, Blue

The Neutrik powerCON FXXA/FXXB is a single-phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. This connector is keyed and color-coded blue for power in. It is designed for appliance couplers where a very rugged solution in combination with a locking device is required to guarantee a safe power connection. This connector is compatible with cable diameters between 6 – 12 mm.

Neutrik NAC3FXXA-W-S Features:

• IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
• Ergonomic design with slip-proof two-component molded housing
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• NEUTRIK quality standard, extremely robust and reliable
• Easy and reliable twist lock system
• Improved kink protection by two-component bushing

Neutrik NAC3FXXA-W-S Specifications:

• Electrical
  • Contact resistance : ≤ 2 mΩ
  • Dielectric strength: > 3 kVac (after mating cycles)
  • Insulation resistance: > 10 GΩ (initially)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: EN 60320-1: 16 A 250 V AC, CBC
  • Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC
• Mechanical
  • Cable O.D.: 6 – 12 mm
  • Lifetime: Typically 5’000 mating cycles
  • Wiresize (mm²): 1.5 – 2.5 mm²
  • Wiresize (AWG): 16 – 12 AWG
  • Locking device: Twist lock
  • Termination: Screw type terminals
• Material
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA6.6)
  • Locking element: Zinc diecast
  • Shell: Polyamide (PA6) / TPE
  • Strain relief: Polyketone
  • Bushing: Polypropylene / TPE
• Environmental
  • Temperature range: -33 °C to +80 °C
  • Protection class: IP20
  • Flammability acc. to UL94: V-0
