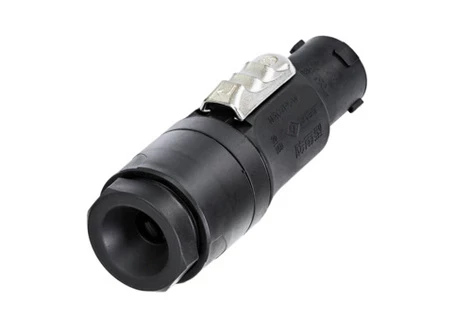

Neutrik NAC3FX-W-TOP-L Locking Power-In Cable Connector, Diameters 10 – 16mm

The Neutrik NAC3FX-W-TOP-L is a locking female cable connector designed for big power cord diameters between 10–16 mm (0.39–0.63 inches). Perfect for H07RN-F3G2.5 or SOOW 12/3 / SOOW 14/3 cables. Certified to EN/UL 60320-1. This connector features power out, screw terminals, IP65 rating, and carries up to 16 A (USA: 20A). The powerCON TRUE1 TOP is a single-phase connector ideal for outdoor applications with breaking capacity (CBC), meaning it can be connected or disconnected under load or live. This heavy-duty sealed power connector is also made with high-impact UV-resistant materials, allowing it to perform in harsh and demanding environments.

Neutrik NAC3FX-W-TOP-L Features:

• Connector for cable diameters of 10-16 mm (0.39 – 0.63 inches)
• IEC EN 60320-1 and UL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and of equipment acc. to IEC 62368-1
• TOP True Outdoor Protection
• Uses high impact UV-resistant materials
• Single phase connector with Circuit Breaking Capability (20 A 250 VAC)
• Extremely robust and reliable cable retention
