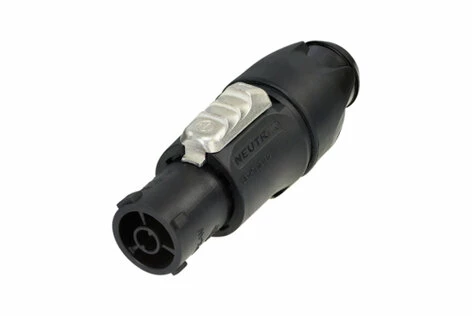

Neutrik NAC3FX-W-TOP Cable End, Powercon Female Pwrout

The powercon TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powercon TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features

• Heavy duty sealed power connector for harsh and demanding environment
• True mains connector with breaking capacity (CBC)
• Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
• Lockable 16 A single phase connector (USA: 20 A)
• ENEC certified according to IEC 60320
• UL498 certified

Specifications

• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 0,1 GΩ (after damp heat test IEC 68-2-30)
• Number of electronic contacts: 2 + PE
• Rated current per contact: 16 A rms (USA: 20 A)
• Rated voltage: 250 V ac
• Cable O.D.: 6-12 mm
• Lifetime: > 5000 mating cycles
• Wiresize: 1.0 – 2.5 mm², 12 AWG
• Contact plating: 2 µm Ag
• Contacts: Bronze (CuSn0.2)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: ZuAl4Cu1
• Shell: Polyamide (PA 6.6 30 % GR)
• Strain relief: Polyacetal (POM)
• Flammability: UL 94 V-0
• Protection class: IP65, UL50E enclosure type 4 (mated)
• Temperature range: -22 °F to +176 °F
