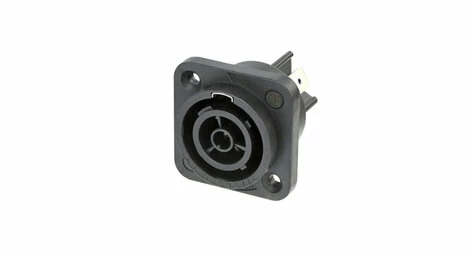

Neutrik NAC3FPX-TOP Powercon TRUE1 TOP Receptacle, 1/4″ Flat Tab Terminals

Neutrik’s NAC3FPX-TOP (TOP=True Outdoor Protection) is a powercon TRUE1 appliance outlet connector with 1/4″ flat tab chassis connection terminals. A locking 16 A true mains receptacle engineered especially for outdoor use, it’s designed to replace existing appliance couplers wherever a very rugged, durable solution in combination with a locking device is what’s needed in order to guarantee a safe power connection. Additionally, it features breaking capacity (CBC), i.e. it can be connected or disconnected while under load or live.

Features

• Heavy duty sealed power connector for harsh and demanding environment

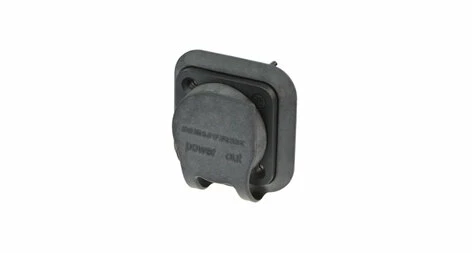

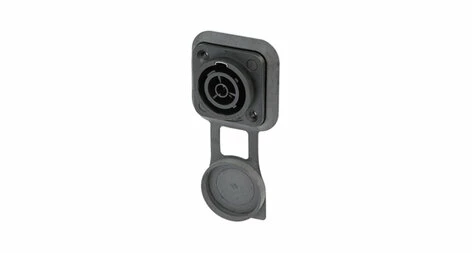

• Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
• Uses high impact UV-resistant materials
• True mains connector with breaking capacity (CBC)
• Lockable 16 A single phase connector (USA: 20 A)
• Easy and reliable twist lock system
• Extremely robust and reliable
• Unique Neutrik cable retention
• ENEC certified according to IEC 60320
• UL498 certified

Specifications

• Electrical:
  • Contact resistance: = 3 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 0.1 GΩ (after damp heat test)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 16 A rms (USA: 20 A)
  • Rated voltage: 250 V ac
• Mechanical:
  • Lifetime: > 5000 mating cycles
  • Wiresize: 2.5 mm²
  • Wiresize: 12 AWG
  • Material:Contact plating: 2 µm Ag
  • Locking element: Stainless steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Spring Copper (CuSn0.2)
• Environmental:
  • Flammability: UL 94 V-0
  • Protection class: IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX)
  • Temperature range: – 30 °C – +80 °C
• Note: further information can be found within the items located under the “Documentation” tab above.
