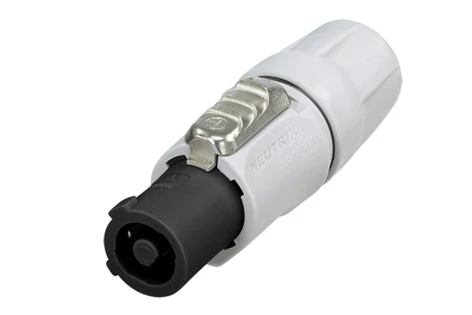

Neutrik NAC3FCB-1 PowerCON 20 A – V-0 Insert – Power Out Cable End, Gray

This is a gray, lockable cable connector for power-output.

The powerCON is a locking cable connector designed for AC power equipment with three conductors for line, neutral, and pre-mating ground. It provides a durable solution, featuring a locking mechanism to ensure a secure power connection in applications where a rugged solution is required.

Neutrik NAC3FCB-1 Features:

• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• Unique Neutrik chuck type strain relief
• Improved kink protection by two-component bushing
• UL, cUL recognized components, VDE certified, SEV approved
• V-0 Flammability rated insert
• Circuit Breaking Capability (IEC 61984) when mated with powerCON XX Series Receptacles

Neutrik NAC3FCB-1 Specifications:

• Product:
  • Title: NAC3FCB-1
  • Gender: female
• Electrical:
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 10 GΩ (initial)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: EN 61984:20 A 250 V AC
  • Rating USA: UL 1977:20 A 250 V AC
• Mechanical:
  • Cable O.D.: 6 – 15 mm (1)
  • Lifetime: > 1000 mating cycles
  • Wiresize: 2,5 mm²
  • Wiresize: 12 AWG
  • Locking device: Quick Lock
  • (1): Cable O.D. range limited to 6 mm – 14 mm acc. VDE
• Material:
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA 6.6)
  • Locking element: Zinc diecast
  • Shell: Polyamide (PA 6.6)
  • Strain relief: Polyacetal
• Environmental:
  • Temperature range: -30 °C to +80 °C
  • Protection class: IP 20
  • Flammability Rating: UL 94 V-0
