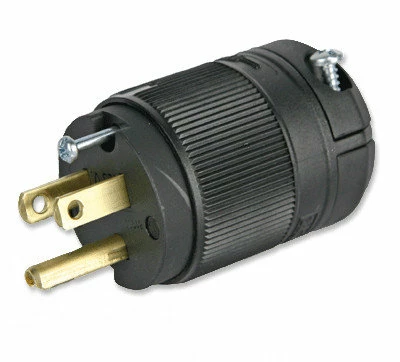

Lex X515P Lex-Loc NEMA 5-15 Male Plug

15 Amp, 125 VAC, 2 Pole, 3 Wire, NEMA 5-15 LexLoc Edison Plug.

Applications:

• Theatrical
• Motion Picture
• Live Events
• Industrial
• Military
• Extension cords
• New or replacement appliance
• Lamp and luminaire plugs

Lex Products Corp. X515P Features:

• Cage clamp terminations cannot loosen, eliminatingthe main cause of device failure
• Does not require tools; simply finger-open and closethe terminals
• Two fast-travel assembly screws save labor.
• All-black color blends into scenery.
• External cord clamp provides enhanced strain relief for a wide range of cord sizes.

Lex Products Corp. X515P Specifications:

• Rating: 15 Amp, 125 VAC
• Agency Approvals: UL Listed
• Lex-Loc™ devices meet or exceed Hospital Grade U.S.tests. Devices conform to U.S. Standards for hospital equipment, #498 and#544, including:
  • Abrupt plug removal (parallel to wall) test
  • Ground contact temperature test
  • Ground resistance test
  • Grounding contact overstress test
  • Assembly security test
  • Mold stress relief test
  • Crush test
  • Cord grip strain relief tests
  • Static cord pull test
  • Rotary cord pull test
  • Impact resistance test
  • Mechanical drop test
• CONSTRUCTION
  • Housing and Body: Nylon – Tough and resistant to a wide range of chemicals. UL Recognized for 125°C continuous use. UL 94V-2 Flammability Index. Beveled design to resist snagging.
  • Blades and Contacts: Solid brass for excellent conductivity
  • Terminal Cover: Clear polycarbonate – terminals visible
  • Assembly Screws: Two U-drive combination slot/crosshead
• MECHANICAL
  • Accommodates 18/3 SJ through 10/3 S cable
  • Cord Accommodation (with inserts): .300”- .430”
  • Cord Accommodation (inserts removed): >.430”- .655”
• ELECTRICAL
  • Dielectric Withstand Voltage: >3,000V
  • Heat Rise: Maximum 30°C after 100 cycles at 150% of rated current
  • Current Interrupting: Yes
  • U.L.Listed File E57672
  • C.S.A.Cer tified File LR81290
