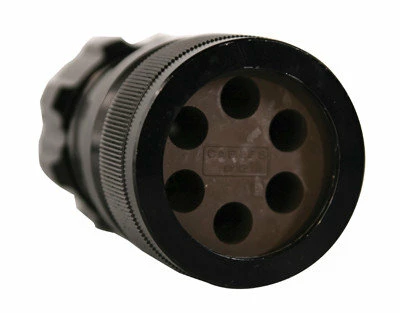

Lex LSC19-LMC-SPR LSC19 Male Spider Inline Connector With Crimp Termination

This connector is used for assembly or repair of six circuit break-out cables. A break-out cable converts one six circuit male connector into six individual single circuit female connectors.

Applications:

• Motion Picture & Television Production
• Outdoor Events
• Entertainment Theatre
• Concert Touring
• Convention Centers
• Sporting Events
• OEM

Lex Products Corp LSC19-LMC-SPR Features:

• Proprietary anti-rotation design features 12interlocking keys to help prevent spinning of the interior within the male and female housings
• Prevents mis-alignment of male and female circuit conductors and unmateable or mismatched connections
• Helps prevent broken conductors and loose or damaged ground rings
• UL Recognized at 23 Amps, 600 VAC
• Each circuit can carry up to a maximum of 23 Amps continuous load
• “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections
• Machined aluminum housing with hard black anodized finish provides enhanced durability
• Silver plated brass contacts for high conductivity
• Interiors are clearly and permanently marked on front and back for easy wiring and circuit identification

Lex Products Corp LSC19-LMC-SPR Specifications:

• Rating: 23 Amp, 600 VAC
• Operating Temperature: -55° to +60° C
• Ingress Protection: IP67 watertight when mated
• Housing Material: Machined aluminum, hard black anodized finish
• Insert: Silicone
• Cable Diameter Range: (6) 12/3 SJT or SJTO or (6)14/3 SJT or SJTO
• Termination Type: Crimp
• Conductor Size: #12 – #16 AWG
• Contacts: Silver plated brass
