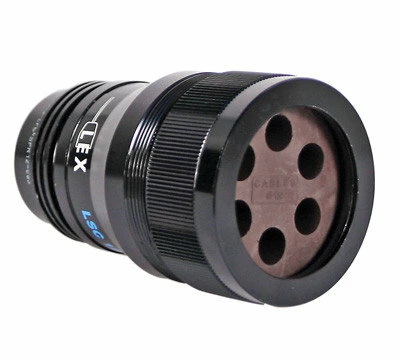

Lex LSC19-LFC-SPR LSC19 Female Spider Inline Connector With Crimp Termination

This connector is used for assembly or repair of six circuit break-in cables. A break-in cable converts six individual single circuit male plugs into one six circuit female connector.

Applications:

• Motion Picture & Television Production
• Outdoor Events
• Entertainment Theatre
• Concert Touring
• Live Events
• Convention Centers
• Sporting Events
• OEM

Lex Products Corp LSC19-LFC-SPR Features:

• Proprietary anti-rotation design features 12interlocking keys to help prevent spinning of the interior within the male andfemale housings
• Prevents mis-alignment of male and female circuitconductors and unmateable or mismatched connections
• Helps prevent broken conductors and loose or damagedground rings
• UL Recognized at 23 Amps, 600 VAC
• Each circuit can carry up to a maximum of 23 Ampscontinuous load
• “Tempered Spring” female contacts maintain constantpin pressure to help ensure low resistance connections
• Machined aluminum housing with hard black anodizedfinish provides enhanced durability
• Silver plated brass contacts for high conductivity
• Interiors are clearly and permanently marked on front and back for easywiring and circuit identification

Lex Products Corp LSC19-LFC-SPR Specifications:

• Rating: 23 Amp, 600 VAC
• Operating Temperature: -55° to +60° C
• Ingress Protection: IP67 watertight when mated
• Housing Material: Machined aluminum, hard blackanodized finish
• Insert: Silicone
• Cable Diameter Range: (6) 12/3 SJT or SJTO or (6)14/3 SJT or SJTO
• Termination Type: Crimp
• Conductor Size: #12 – #16 AWG
• Contacts: Silver plated brass
