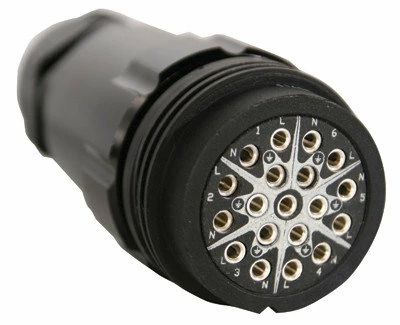

Lex LSC19-LFC-29 LSC19 Female Inline Connector With Crimp Termination

This connector is used to connect power to six circuits of theatrical or motion picture luminaries. It is also used for assembly or repair of six circuit lighting extension cables and equipment cables. 19 pin, 6-circuit, 23 Amp, 600 VAC, LSC19 female inline connector, crimp termination, black finish.

Applications:

• Motion Picture & Television Production
• Outdoor Events
• Entertainment Theatre
• Concert Touring
• Convention Centers
• Sporting Events
• OEM

Lex Products Corp LSC19-LFC-29 Features:

• Proprietary anti-rotation design features 12interlocking keys to help prevent spinning of the interior within the male andfemale housings
• Prevents mis-alignment of male and female circuitconductors and unmateable or mismatched connections
• Helps prevent broken conductors and loose or damagedground rings
• UL Recognized at 23 Amps, 600 VAC
• Each circuit can carry up to a maximum of 23 Ampscontinuous load
• “Tempered Spring” female contacts maintain constantpin pressure to help ensure low resistance connections
• Machined aluminum housing with hard black anodizedfinish provides enhanced durability
• Silver plated brass contacts for high conductivity
• Interiors are clearly and permanently marked on front and back for easywiring and circuit identification

Lex Products Corp LSC19-LFC-29 Specifications:

• Rating: 23 Amp, 600 VAC
• Operating Temperature: -55° to +60° C
• Ingress Protection: IP67 watertight when mated
• Housing Material: Machined aluminum, hard blackanodized finish
• Insert: Silicone
• Cable Diameter Range: 0.55″ to 1.00″
• Termination Type: Crimp
• Conductor Size: #12 – #16 AWG
• Contacts: Silver plated brass
