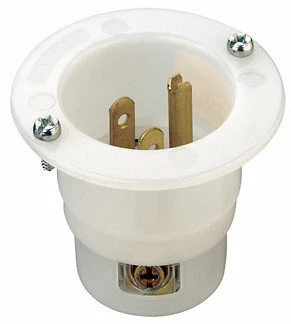

Leviton 5278-C Flanged Straight Blade Power Inlet

NSI / Leviton’s Straight Blade Power Inlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.

NSI / Leviton 5278-C Specifications:

• Electrical:
  • Grounding: Grounding
  • Amperage: 15 Amp
  • Voltage: 125 Volt
  • Pole: 2
  • Wire: 3
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
• Environmental:
  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40C to 60C
• Material:
  • Body Material: Super Tough Nylon
  • Wire Module: Nylon
  • Blades/Contacts: Solid Brass
  • Terminal Screws: Brass
  • Assembly Screws: Steel, Zinc Plated
  • Color: White
• Mechanical:
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Terminal Accom.: 18-10 AWG
  • Product ID: Ratings and NEMA I.D. permanently marked on device
• Other:
  • NEMA: 5-15P
  • Termination: Back
  • Face Material: Nylon
  • Strap Material: Thermoplastic Nylon
  • Color: White
• Standards and Certifications:
  • NEMA: WD-6
  • ANSI: C-73
  • UL 498: File E13399
  • UL Fed Spec WC-596: File E13393
  • CSA C22.2 No. 42: File LR-406
  • NOM: 057
  • Warranty: Lifetime Warranty
