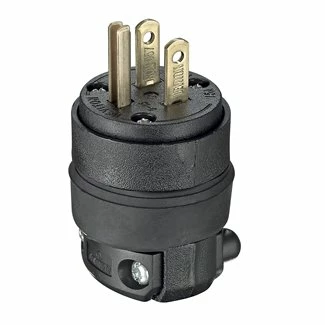

Leviton 515-PR 515PR

This plug is moisture, chemical and abuse-resistant, and is ideal for indoor and outdoor use. Leviton’s EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Product Features:

• NEMA: 5-15P
• Color: Black
• Standards and Certifications:
  • NEMA: WD-6
  • ANSI: C-73
  • UL498: File E13393
  • CSA C22.2 No. 42: File LR-406
  • NOM: 057
  • Warranty: 10-Year Limited

Specifications:

• Electrical:
  • Grounding: Grounding
  • Amperage: 15 Amp
  • Voltage: 125 Volt
  • NEMA: 5-15P
  • Pole: 2
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Environmental:
  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40C to 60C
• Material:
  • Body Material: EPTR Rubber
  • Blades/Contacts: Brass
  • Assembly Screws: Steel, Zinc Plated
  • Color: Black
• Mechanical:
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Terminal Accom.: 18-12 AWG
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Cord Range: .245 – .700
