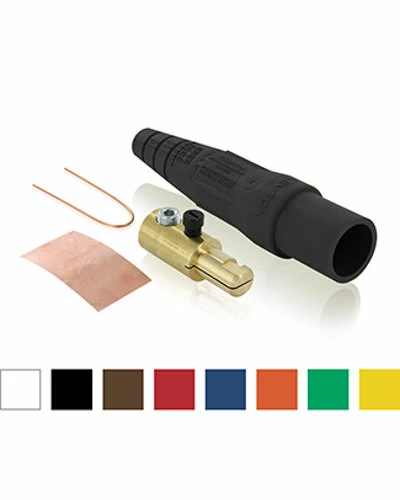

Leviton 16D23 U Rhino-Hide Single Pole Cam-Type Male Plug

Rhino-Hide Single Pole Cam-Type Connectors from Leviton are designed for easy assembly and disassembly without special tools. A thermoplastic screw is used to tightly secure the contact inside the insulating sleeve, making assembly, disassembly and field repairs effortless. The plugs use plastic locking and reinforcement rings molded into insulating sleeves and receptacles ensuring the integrity of the connection. Under severe stress and load conditions, these rings will not melt, break or crack.

Leviton 16D23-U Rhino-Hide Cam-Type Male Plug Specifications:

• Max. Amperage: 400A
• Max. Voltage: 600V
• Gender: Male
• Connection Type: Single Set Screw
• Cable Range: 2-4/0 AWG
• Sleeve Material: Santoprene TPV
• Contact Material: Brass
• Strain Relief: Copper Wire
• NEMA Rating: Type 3R
• UL: 1691
