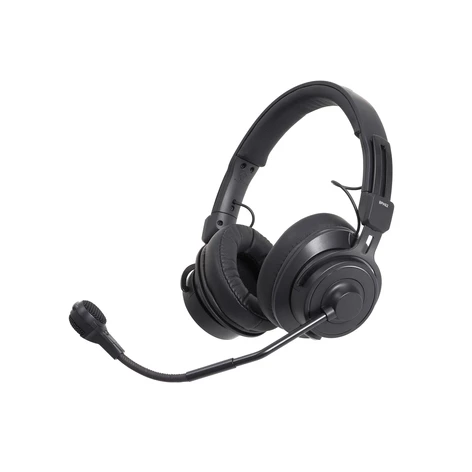

Audio-Technica BPHS2 Dual-Ear Broadcast Headset, Dynamic Boom Mic, XLR3 + ¼”

The BPHS2 from Audio-Technica is a Dual-Ear Headset with onboard dynamic hypercardioid microphone that was created especially for news and sports Broadcasting. This rugged model offers highly-intelligible and commanding vocal reproduction, with a comfortable fit and excellent sound isolation. It features a low-profile, on-ear, closed-back design that’s based upon the ATH-M60x professional monitor headphones and includes the same 45mm large-aperture driver, along with premium, memory foam earpad and headband, plus a memory foam temple pad – providing users a high-fidelity headset that’s built to last.

The mic’s hypercardioid polar pattern keeps the focus of pickup on the Broadcaster’s voice, even in loud environments, and is tailored for rich, broadcast-ready sound reproduction of that voice. The mic sits at the end of a rigid boom with a strong, flexible gooseneck section that allows easy-yet-secure mic positioning adjustment. The boom’s design also lets it swivel forward and back so that the headset can be worn with the mic positioned on either the right or left side.

Applications

News and Sports Broadcasting

Includes

• BPHS2 Dual-Ear Headset with boom mic
• (3) Windscreens
• Cable clip
• ¼” (6.3mm) screw-on adapter
• Pouch

Features

• Low-profile, closed-back, on-ear design provides excellent isolation and fit
• Proprietary 45mm large-aperture drivers (the same used in the ATH-M60x pro headphones) with rare earth magnets and copper-clad aluminum wire voice coils
• Hypercardioid dynamic microphone with frequency response tailored for commanding, broadcast-ready vocal reproduction
• Carefully crafted using key metal components for lasting durability
• Low-impedance design delivers high output level from any headphone output
• Boom-mounted microphone can be positioned on the left or right side
• Rigid boom with strong, flexible gooseneck section allows microphone to be adjusted and stay in place
• Premium, memory foam earpads and headband allow headset to be worn comfortably for hours on end
• Earpads and headband detach for easy replacement
• 9.8′ (3.0m) detachable cable (BPCB2) with TA6F connector at headset, and 3-pin XLRM-type connector (microphone) and ¼” (6.3mm) connector (headphone) outputs
• Unterminated detachable cable (BPCB3) is available separately
• Also available (all sold separately): BPHS2 Stereo Broadcast Headset with unterminated BPCB3 cable (BPHS2-UT); Stereo Broadcast Headset with cardioid condenser microphone (BPHS2C); Single-Ear Broadcast Headset with hypercardioid dynamic microphone (BPHS2S)

Specifications

• Type:
  • Headphone: Closed-back Dynamic
  • Microphone: Hypercardioid Dynamic
• Driver Diameter: 45mm (Headphone)
• Magnet: Neodymium (Headphone)
• Voice Coil: Copper-clad aluminum wire (CCAW)
• Frequency Response:
  • Headphone: 15 Hz to 28,000 Hz
  • Microphone: 50 Hz to 14,000 Hz
• Maximum Input Power: 1,600 mW @ 1 kHz (Headphone)
• Sensitivity:
  • Headphone: 102 dB
  • Microphone: -57 dB (1.4 mV) re 1 V @ 1 Pa
• Impedance:
  • Headphone: 38 Ω
  • Microphone: 550 Ω
• Weight: 8.8 oz. (250 g)
• Dimensions: 0.92″ (23.4mm) diameter (microphone)
• Cable:
  • Detachable 9.8′ (3.0m) long cable with 6-pin connector at headset end
  • Male XLR3-type connector (microphone) and ⅛” (3.5mm) phone plug (headphone) outputs
• Note: further information can be found within the “BPHS2/BPHS2C/BPHS2S User Manual” located under the “Documentation” tab above.
