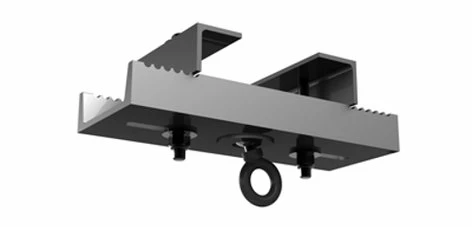

Adaptive Technologies Group BC7-12-GE Beam Ware 7-12″ Gimbaled Style Beam Clamp

Standard, pre-engineered channel style beam clamps anchor to a building’s beam structure to provide a safe and predictable method of rigging grids, clusters, arrays and other objects. The BC7-12-GE Gimbaled Style beam clamp from Allen Products is unique in that it offers a gimballed swivel eye that accommodates up to 20° of off-axis side loading in any direction without losing any of its working load. The gimbaled feature is especially predictable when bridling suspended objects from wire rope, rigging chain, span sets, etc. The body of the clamp mounts flush underneath the building’s I-beams and side clamps adjust to accommodate beam flange widths between 7″ and 12″.

Allen Products BC7-12-GE Includes:

• 16″ Channel
• Two Lock/Angle Brackets
• 5/8″ Eyebolt
• Swivel Ball
• Five Flatwashers
• Two Nyloc Nuts
• Hex Nut
• Two Hex Bolts
• Two 1/4″ Spacers
• Two 1/2″ Spacers
• Two 1″ Spacers

Allen Products BC7-12-GE Features:

• For Beam Flanges 7″ – 12″
• Accomadates thicker beam flanges
• Gimballed hang point swivels 360°
• Hang point retains same WLL from 0° – 20°
• Non loosening fasteners

Allen Products BC7-12-GE Specifications:

• Materials: Alloy Steel Components
• Width: 7″ to 12″ (178 mm to 305 mm)
• Color: Black
• Design Factor: 5:1
• Vertical WLL: 2000 lbs (908 kg) WLL (Vertical)
• 20º WL: 2000 lbs (908 kg) WLL
• 45º WL: 1200 lbs (545 kg)
• 90º WL: Do Not Exceed 65°
