Adaptive Technologies Group BC7-12-2 16″ Channel Style Dual Suspension Points Beam Clamp For 7-12″ Beams, 1600lb WLL

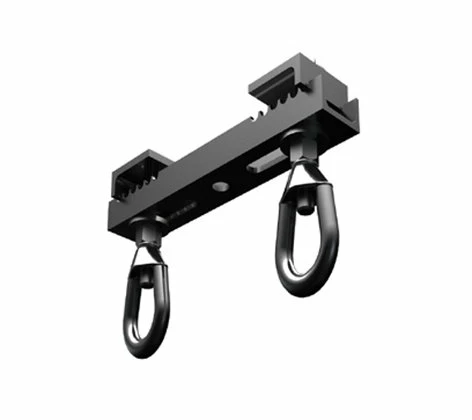

Standard, pre-engineered beam clamps anchor to a buildings beam structure and offers a safe and predictable method of rigging grids, clusters, arrays and other objects from overhead. This channel style beam clamp is adjustable and mounts flush underneath the beams’s flange. it comes equipped with two eyenuts, one on each side of the flange, for suspending objects from wire rope, rigging chain, span sets, etc.

Use the BC7-12 channel style beam clamp to provide two load rated overhead rigging points from structural I-Beams with flange widths ranging between 7″ and 12″ (178-305mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to seciure the clamp and the beam flanges must be parallel to the floor.

Allen Products BC7-12-12 Specifications:

• Materials: Stainless and glavanized components
• Width: 3-8″
• Color: Black
• Design Factor: 5:1
• Working Load: 2000 Lb. Vertical WLL
• 45° WL: 825 lb.
