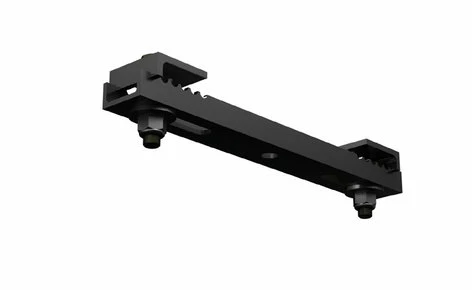

Adaptive Technologies Group BC7-12-0 16″ Channel Style Beam Clamp Without Eyebolts For 7-12″ Beams, 1600lb WLL

Standard, pre-engineered beam clamps anchor to a building’s beam structure and offers a safe and predictable method securing to other objects from overhead. This channel style beam clamp is adjustable, mounts flush underneath the beam’s flange and provides a centrally located mounting hole for use with all-thread, yokes and U-Brackets, truss clamps, Unistrut, etc.

Use the BC7-12 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 7” and 12” (178-305 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads. A hand wrench is all that is required to secure the clamp.

Allen Products BC7-12-0 Specifications:

• Materials: All Steel Components
• Width: 3” to 8” (76mm to 203mm)
• Finish: Powder Coat
• Color: Black
• Design Factor: 4:1
• Working Load: 2000 Lb (908 Kg) WLL (VERTICAL)
• 90° WL: Do Not Side Load
