Adaptive Technologies Group BC3-8-2 12″ Channel Style Dual Suspension Points Beam Clamp For 3-8″ Beams, 2100lb WLL

Creating suitable overhead structural suspension points for rigging systems can be difficult so using the building’s own structure can provide more options for the installer. The BC3-8-2 from ATM Fly-Ware allows you to attach to the building’s beam structure and offer an easy, safe and predictable method of suspension. The stainless steel screw drive style adjusts to both small and medium flanged beams but is constructed from stainless steel for outdoor applications.

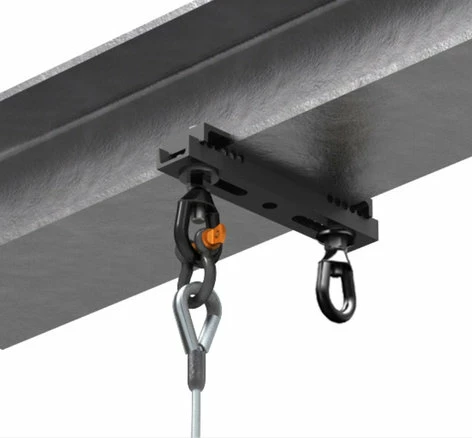

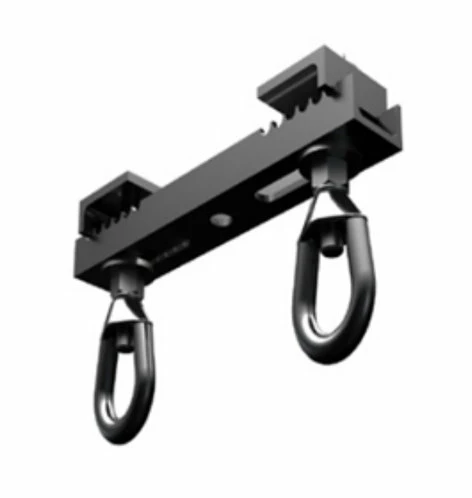

This One Ton Beam Clamp is a standard, pre-engineered channel style beam clamp is adjustable and mounts flush underneath the beam’s flange. It comes equipped with two eye nuts, one on each side of the flange, for suspending objects from wire rope, rigging chain, spansets, etc.

Use the BC3-8-2 channel style beam clamp to provide an offset load rated overhead rigging point from structural I-Beams with flange widths ranging between 3” and 8” (76-203 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp to the beam. Beam flanges must be parallel to the floor to achieve the stated safe working loads.

ATM Fly-Ware BC3-8-2 Includes:

• 2 pcs 5/8” eye nut
• 1 pc Channel Clamp

ATM Fly-Ware BC3-8-2 Features:

• For Beam Flanges 3″-8″
• Two load-rated suspension points
• Clamps quickly / permanently to I-Beams
• Available for beam flanges ranging from 3″-12″

ATM Fly-Ware BC3-8-2 Specifications:

• Material: All Steel Components
• Width: (BC3-8) 3” to 8” / 76mm to203mm
• Finish: Powder Coat
• Color: Black
• Design Factor: 4:1
• WLL: 2000 lb / 908 Kg WLL(VERTICAL)
• 45 DEG. WL: 825 lb / 375 Kg
• NOTE: DO NOT EXCEED 45° off hang points
• WARNING – ALWAYS INSTALL SAFETY CABLES:
  • Mounting and/or suspension loudspeakers requires experienced professionals. Improperly installed loudspeakers can result in property damage, personal injury and/or liability to the installing contractor.

Note

Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.
