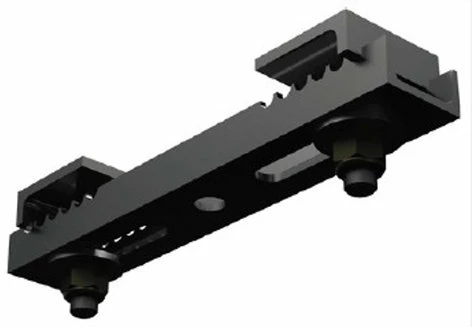

Standard, pre-engineered beam clamps anchor to a building’s beam structure and offer a safe and predictable method for suspending objects from overhead. This channel style beam clamp is adjustable, mounts flush underneath the beam’s flange and provides a centrally located mounting hole for use with many types of connections, including all-thread, yokes and U-Brackets, truss clamps, Unistrut, etc.
Use the BC3-8 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 3″ and 8″ (76-203 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
ATM Flyware BC3-8-0 Specifications:
- Materials: All steel components
- Width: 3″ – 8″ (76 – 203 mm)
- Finish: Powder coat
- Color: Black
- Design Factor: 4:1
- Working Load: 2000 Lb (908 Kg) WLL (VERTICAL)
- 45º WL: 825 Lb (375 Kg)
- 90° WL: Do Not Side Load
