0 to 26 inch Dual Hang Point

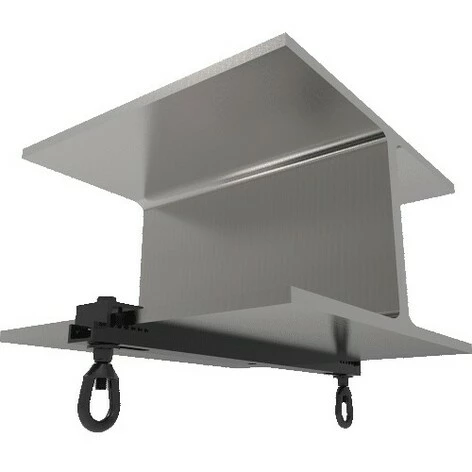

The Adaptive Technologies BC20-26-2 allows for two offset load rated rigging points from structural I-Beams with flange widths ranging between 20” and 26” (508-660.4 mm). The BC20-26-2 beam clamp model is designed for a quick, simple and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is needed to secure the clamp to the beam. *IMPORTANT – Beam flanges must be parallel to the floor to achieve the stated safe working loads.
NOTE: Recommended torque = 40-50 ft/lb
ATM BC20-26-2 Includes:
- 2 pcs 5/8” eye nut
- 1 pc Channel Clamp
ATM BC20-26-2 Features:
- For Beam Flanges 20″-26″
- Two load-rated suspension points
- Clamps quickly / permanently to I-Beams
ATM BC20-26-2 Specifications:
- Material: All Steel Components
- Width:(BC20-26-2) 20” to 26”
- WLL:600 lb / 272 Kg WLL (VERTICAL)
- Finish: Powder Coat
- Color: Black
- Design Factor: 5:1
- 45 DEG.: 354 lb
