Adaptive Technologies Group BC12-17 22″ Channel Style Beam Clamp For 12-17″ Beam, 980lb WLL

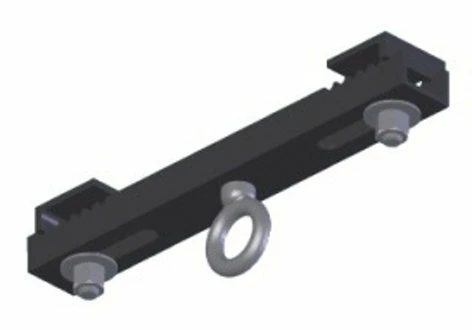

The ATM BC12-17 is an adjustable channel style beam clamp that mounts flush underneath an I-Beam’s flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc.

This steel beam clamp provides a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12″-17″. The BC12-17 provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead, and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor to achieve the stated working loads.

ATM Flyware BC12-17 Channel Style Beam Clamp Includes:

• (1) Beam clamp
• (2) Locking angle plates
• (2) Flat 5/8″ washers
• (2) 5/8-11 Nyloc nuts

ATM Flyware BC12-17 Channel Style Beam Clamp Features:

• For static loading only
• Provides safe load-rated hang point to 45° off center
• For beam flanges from 12″-17″
• Two load-rated suspension points
• Clamps quickly and permanently to I-Beams

ATM Flyware BC12-17 Channel Style Beam Clamp Specifications:

• Material: All steel components
• Width: 12″ to 17″ (305 to 432 mm)
• Finish: Powder coat
• Color: Black
• Design Factor: 5:1
• WLL: 980 lbs (444.521 kg)
• 45° WL: 578 lbs (261 kg)
• PLEASE NOTE: DO NOT EXCEED 45° off vertical
