Provides a fast, easy, safe way to rig direct loads, bridles, and hitches.

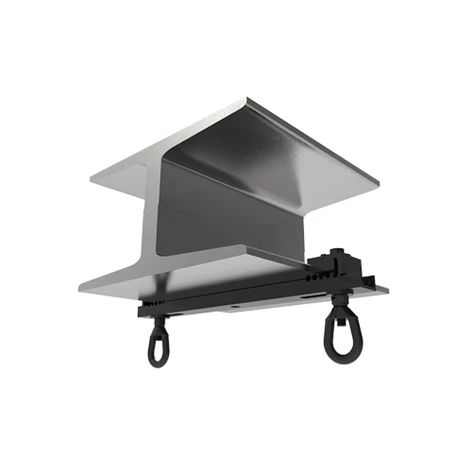

The ATM BC12-17-2 Beam Clamp is designed to supply two offset load rated rigging points from structural I-beams with flange widths ranging between 12” and 17” (304-431mm). A hand wrench is all that is needed to secure the clamp to the beam.
Note Beam flanges must be parallel to the floor to achieve the stated safe working loads.
ATM BC12-17-2 Includes:
- (1) Channel Clamp
- (2) 5/8″ Eye Nuts
ATM BC12-17-2 Features:
- For Beam Flanges 12″-17″
- Two load-rated suspension points
- Clamps quickly / permanently to I-Beams
ATM BC12-17-2 Specifications:
- Material: All Steel Components
- Width: 12” to 17” (304 – 406 mm)
- WLL (Vertical): 980 lb (445 Kg)
- Finish: Powder Coat
- Color: Black
- Design Factor: 5:1
- 45 DEG.: 578 lbs (261 Kg)
